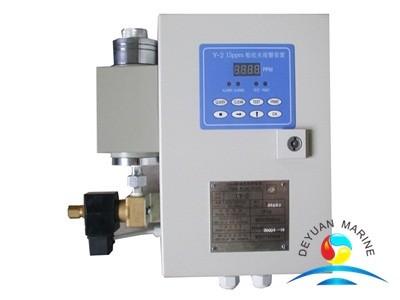

Accurate Bilge Oil Water Separator 15ppm Bilge Water Alarm Device

Accurate Bilge Oil Water Separator 15ppm Bilge Water Alarm Device

Features:

1) Measuring range: 0-30ppm (display range 0-80ppm).
2) Measurement precision: (15ppm alarm) ± 5ppm (meet the IMO standard).
3) Display type : LED digital tube.
4) 15ppm bilge water Alarm Alarm indication: 4 red LED.
5) 2-way alarm relay.
6) Rated capacity of relay contact 250VAC 3A (non-emotional).

7)Model:15ppm bilge alarm.

Specifications:

Measure range:0-30ppm

Alarm Point:1-15 ppm adjustable

Accuracy: Better than 5mg/l

Power Supply:220VAC/110VAC ± 10%

Display:LCD display

Size (over all):360 mm W x 240 mm H x 105 mm D

Standard:IMO.Res.MEPC.107(49)

Technique Parameter:

Measurement range: 0-30ppm(When the measured sample water concentration is over 40ppm, digital pipe begins to show 80ppm).

Measurement precision: ±5ppm

Alarm indication: two emitting LED

Concentration value display: 3-bit LED

Alarm point: 15ppm

Load of contact of alarm relay: 5A/220V

Output analog signal: 4~20mA or 0~10V DC

Feed liquid Pressure: 0.01~0.5MPa

Weight: about 13.5Kg

Power supply: AC220±10% 50Hz±5%

Power consumption: 20W

Safeguard grade: IP45

Operational environment: 0~55°C, relative humidity 95~100%, normal

marine machinery

marine engine

Accurate Bilge Oil Water Separator 15ppm Bilge Water Alarm Device Images
