High Precision Lockable Stacking Cone Iso Container Fittings

Product Features

China Manufacturer Wholesale High Precision Lockable Stacking Cone

Shipping Container Parts

Hanging stacking cones are placed between containers in a stack. Slots into corner castings. To resist horizontal forces.there are many types exist, and the most popular type is: Single Type & Double Type(Horizontal & Longitudinal). It may be locked into bottom corner castings prior to lifting a container on board.

Detail Specifications

China Manufacturer Wholesale High Precision Lockable Stacking Cone

Shipping Container Parts

1. Main Applications: Shipping/Cargo Containers, Trucks,Boxes and Others.

2. Material:Lead etc.

3. High Strength

4. High Quality, Competitive Prices, and Professional Services of exporting.

5. Wide varieties of products for your choices

6. A variety of designs

7. Strict inspection on process of producing.

-Lockable Stacking Cones
-Container Lashing and Fittings
-ABS,BV,CCS,GL,KR certi.
-Surface: Painted or Galvanized

Material: Made of casting steel

Finish: Hot dip galvanised

Weight: 2.6KG; 3.0KG; 4.0KG

M.B.L.:Tension:

M.B.L.:Shear:420KN

M.B.L.:Compression:2000KN

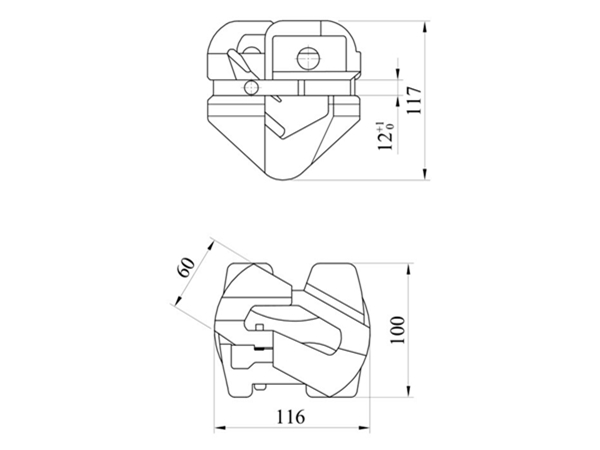

Product Picture

iso container fittings

shipping container spare parts

High Precision Lockable Stacking Cone Iso Container Fittings Images
