With Huge Power Marine Electric/Hydraulic Fixed Pitch Propeller Bow Thruster

  • 1
  • 2
  • 3

Brand Name : Deyuan marine

Model Number : TT500~TT2400

Certification : CCS,ABS,CE,EC,GL,BV

Place of Origin : China

MOQ : 1 Piece

Price : USD2000~10000/Piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 Pieces Per Month

Delivery Time : Up to quantity

Packaging Details : Wooden case, export standard

Product Name : Marine Electric/Hydraulic Fixed Pitch Propeller Bow Thruster

Type : Fixed Pitch Propeller Bow Thruster

Usage : Boat, Ship,Vessel,Marine

Materials : As Per Customer's Requirements

Origin : China

Contact Now


Product Features


With Huge Power Marine Electric/Hydraulic Fixed Pitch Propeller Bow Thruster

  • Propeller Diameter 500-2400mm.
  • Type: Controllable pitch and fixed picth
  • Electric or engine drive.
  • CCS, BV, ABS, NK, etc
  • Easy Installation and Periodical Inspection
  • Is especially reduced duct lip and has a structure that it is able to weld anywhere on outer surface of duct for installation, On the periodical inspection, it is almost
  • Not needed to change parts except seal.
  • Various type of driving
  • Compact new control system can provide easy operation. Customer can choose various configuration of prime mover, electric motor, diesel engine or hydraulic motor.



Detail Specifications

With Huge Power Marine Electric/Hydraulic Fixed Pitch Propeller Bow Thruster

Type TT500 TT600 TT700 TT800 TT900 TT1000 TT1100 TT1300 TT1480 TT1650 TT2000 TT2400
Max Input Power (KW) 63/72 90/105 135/165/ 180/190 200/235 280/290 315/340 445/480 560/620 680/730 1050/900 1580/1720
Reduction Ratio 1..52 2.071 2.07 2.417 2.42 3.09 3.09 3.78 4.364 4.73 4.82 4.63
Max Input Torque (N.m) 600 900 900 1400 1400 2100 2100 3000 3800 4500 7250 15400
Max Input speed (r/min) 1450/1750 1450/1750 1450/1750 1450/1750 1450/1750 1450/1750 1450/1750 1450/1750 1450/1750 1450/1750 1450/1190 980/1190
Propeller Speed (r/min) 954/1151 700/845 700/845 600/724 600/724 600/724 469.1/566 384/463 332.3/401 307/370 301/247 211/257
Propeller Diameter. (mm) 500 600 700 800 900 900 1100 1300 1480 1650 2000 2400
Max thrust 10/11.2 14.5/16.3 20/24.8 29.5/30.5 31/35.4 43/45.2 49/53.8 67/73 88/95 105/110 165/150 250/260
Cylinder standard length(mm) 600 800 800 920 920 1045 1045 1190 1320 1446 1680 1990
Cylinder standard inner Diameter.(mm) 515 615 715 818 918 1020 1120 1328 1510 1680 2030 2430

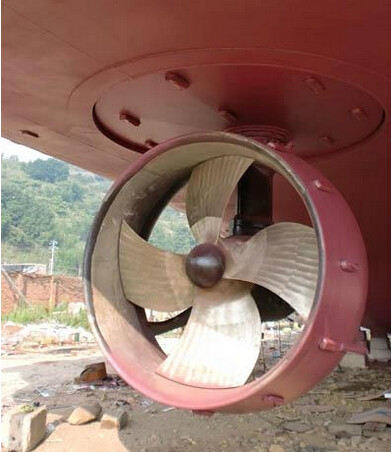

Product Picture



With Huge Power Marine Electric/Hydraulic Fixed Pitch Propeller Bow ThrusterWith Huge Power Marine Electric/Hydraulic Fixed Pitch Propeller Bow ThrusterWith Huge Power Marine Electric/Hydraulic Fixed Pitch Propeller Bow Thruster
